Tipping Valves

The full range of trucking valves provide a range of 50 to 280 liter per minute options.

Many of our different valves have been designed together with many OEM manufacturers.

This gives you a product that will fit any application.

Dual pressure valves suitable for walking floor systems. Mechanical “click” are used and a in-cab pneumatic versions is also available.

Enquire

Model	Flow I/m	BAR Cont.	Bar Peak	P	A	T	T2	A+B
DM 50	50	300	350	1/2″ (std.) or 3/8″	1/2″	1/2″
DM 51	40	250	300
DM 70	80	350	500	1/2″	3/4″	3/4″ *
DM 130	130			3/4″
DM 150	150	250	300	3/4″ M (std) **	3/4″	1″ *
DM 151				1″	1″			1/2″ ***
DM 160	160	350	500	3/4″ (std) **	1″	1″ *
DM 162							1″
DM 180-250	180-200 260-300	300	450	3/4″ (std) **
DM 240	160-240 ret.	350	400	3/4″ (std) **	1″	1″	1″
	Also dual setting

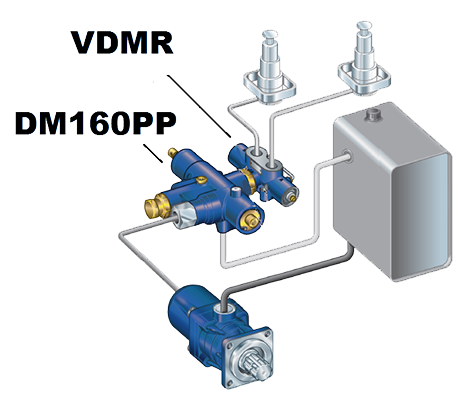

VDMR	160 / 200	350	600	1″				3/4″ (std) or 1″

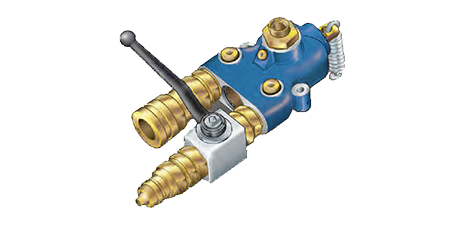

VFCFR	160		400		1″	1″
			* Has both threaded and flanged face interface 3/4″ and 1″ are optional – see catalogue * 1/2″ sectional valves ports
