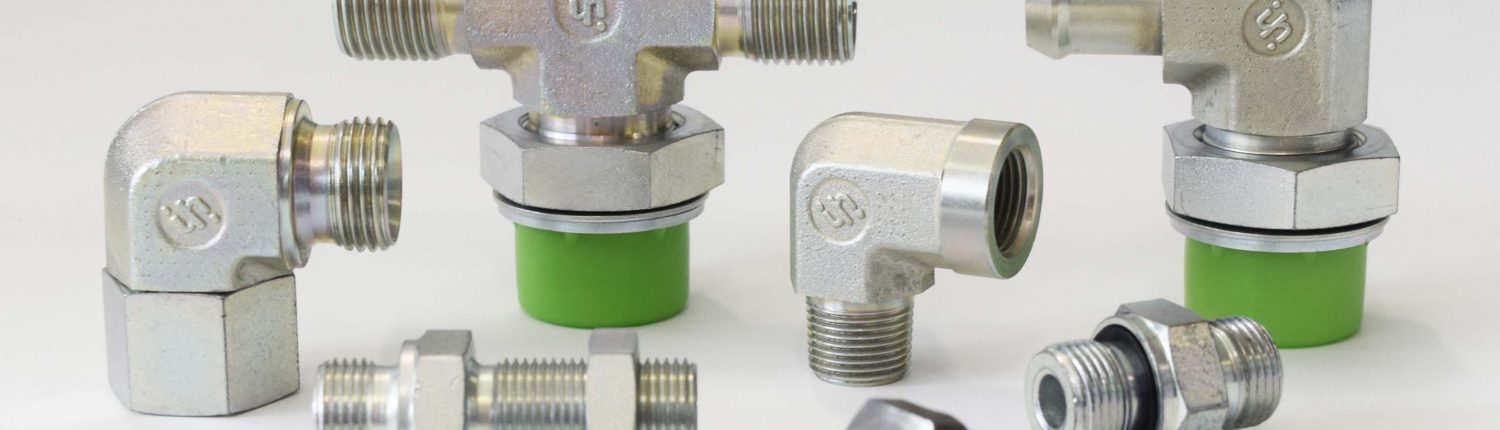

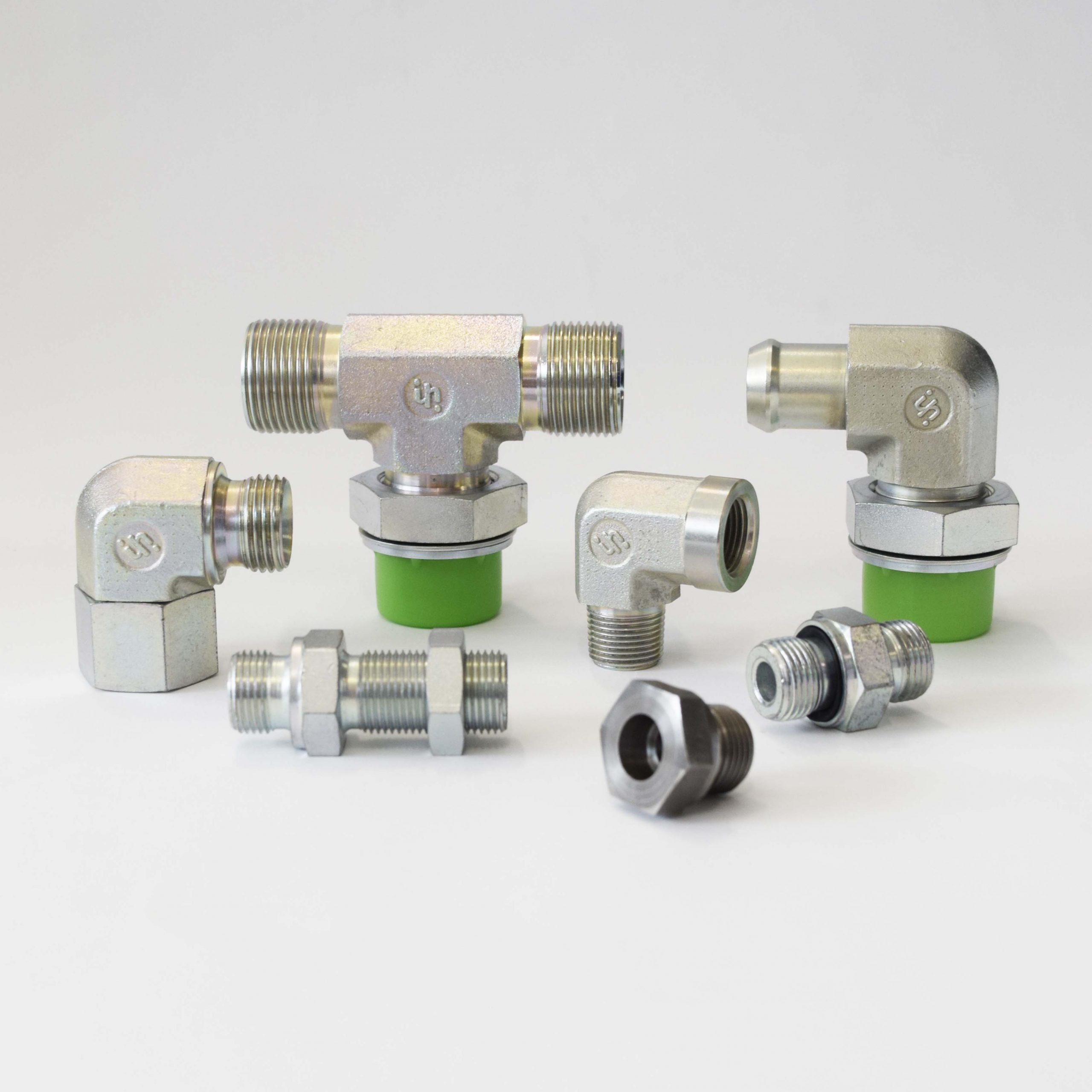

BSP and BSPT adapters

BSP adapters conform to ISO 8434-6 and BS 5200.

For the BSPP connection, the seal is achieved by the contact of conical surfaces at a 60° angle, with or without an o-ring.

The BSPT connection creates the seal on the thread at a 55° angle, by adding sealing materials.

The reference standards are ISO 7/1 – BS 21 and DIN 3852-2 (standard).

The sealing systems ensure good performance at medium-low pressures.

They are predominantly used in the industrial sector.

To find out more about our adaptors range download this catalogue section in the link below or click the enquire further button to contact a sales representative for more information.
